RE620 – RE650
Encoder RE620
- Square flange 63.5×63.5 mm
- Body Ø 58 mm
- Shaft Ø: 6 – 8 – 9.52 – 10 mm
- PPR: 2 ÷ 12500
63.5×63.5 mm square flange
The range of square-flanged incremental encoders includes the series RE620, with centering mask diameter 31.75 mm, compatible with the international standard SIZE25, and the series RE650, with centering mask diameter 50 mm.
Both the types are housed in a metal case. The connection type and position can be chosen among different options, as well as the output signal formats and the shaft diameters.
The pulses per revolution number ranges from 2 to 12500.
The zero reference pulse option is available for both series (type RE621 – RE651).
TECHNICAL SPECIFICATIONS
- Voltage supply 5/30 Vdc – Power consumption 30/80 mA
- Max counting frequency 100 KHz – 200 KHz for ppr > 1250
- Axial or radial connector outlet, equipped with the flying part – Axial or radial cable outlet, 3 m long cable (cable length 1 m with line driver output)
- Output signals: NPN open collector, push-pull, 5 Vdc line driver (supply 5/30 Vdc), 5/30 Vdc line driver (supply 5/30Vdc)
- Protection against short circuit and polarity reversal
- Aluminium case
- IP65 protection degree (optional IP66 with O-ring mounted on the shaft)

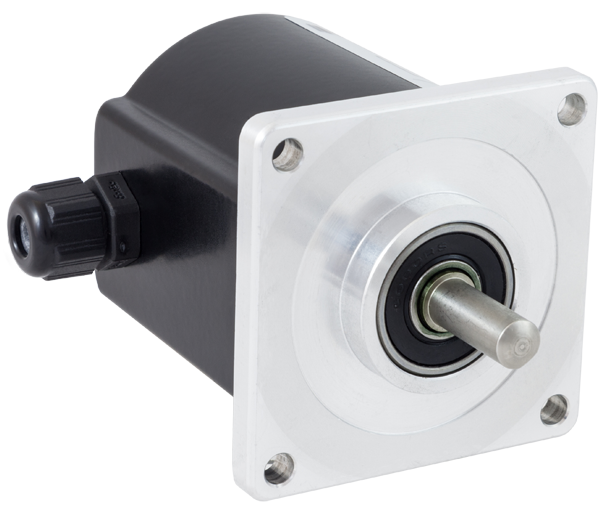

Series RE620
63.5 x 63.5 mm square flange
Centering mask Ø 31.75 mm
Shaft Ø 6, 8, 9.52 or 10 mm
Aluminium housing
International standard flange SIZE25
Pulses/revolution: 2÷12500

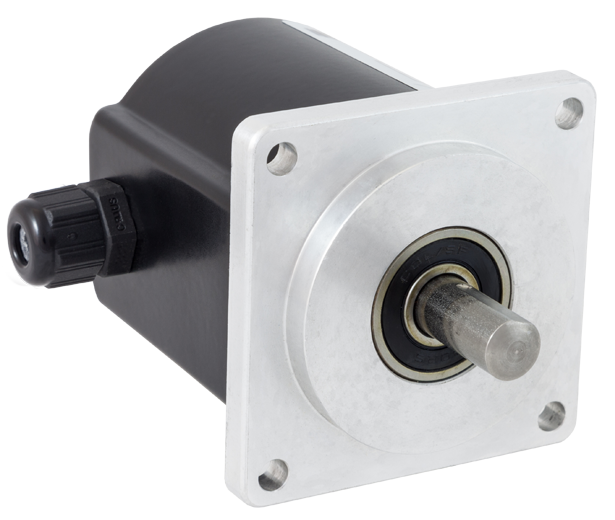

Serie RE650
63.5 x 63.5 mm square flange
Centering mask Ø 50 mm
Shaft Ø 6, 8, 9,52 or 10 mm
Aluminium housing
SIZE25
Ppr: 2÷12500
