RE400 – RE470 – RE410 – RE450
Hollow Shaft Encoder
- Blind hollow shaft
- Body Ø 58 mm
- Hollow shaft Ø 6, 8, 10, 12, 14, 15 mm
- PPR: 2 ÷ 12500
Hollow shaft
The range of incremental encoders fit to be coupled to motor shafts includes different mechanical types: the series RE400, with flange diameter 53.5 mm and RE470, with flange diameter 72 mm, provide a coupling joint, while the series RE410 and RE450 avail on a hollow shaft. Different measures are available for the joint hole and for the shaft diameter.
All the types are housed in a metal case. The connection type and position can be chosen among different options, as well as the output signal formats.
The pulses per revolution number ranges from 2 to 12500.
The zero reference pulse option is available for all the series (type RE401/RE411/RE451/RE471).
TECHNICAL SPECIFICATIONS
- Voltage supply 5/30 Vdc – Power consumption 30/80 mA – Max counting frequency 100 KHz / 200 KHz for ppr>1250
- Axial or radial connector outlet, equipped with the flying part – Axial or radial cable outlet, 3 m long cable (cable length: 1m with line driver output)
- Output signals: NPN open collector, push-pull, 5 Vdc line driver (supply 5/30 Vdc), 5/30 Vdc line driver (supply 5/30 Vdc)
- Protection against short circuit and polarity reversal
- Metal case
- Protection degree IP65

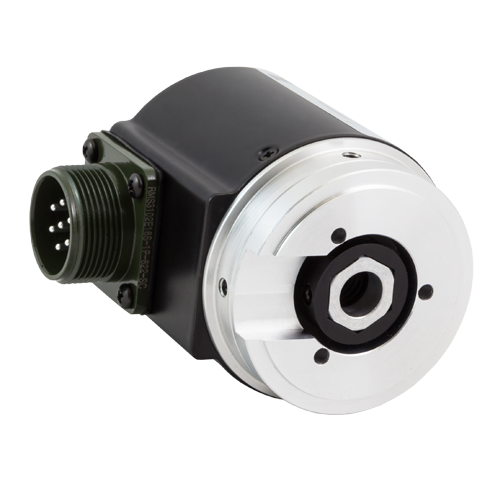

Series RE400
Hollow shaft for direct coupling to a motor shaft Ø 6, 8 or 10 mm,
Ø 53.5 mm flange, fixing holes on Ø 30 mm
Ø 58 mm body
Series RE470
Joint for direct coupling to a motor shaft Ø 6, 8 or 10 mm,
Ø 72 mm flange, fixing holes on Ø 63.5 (optional 60 mm)
Ø 58 mm body

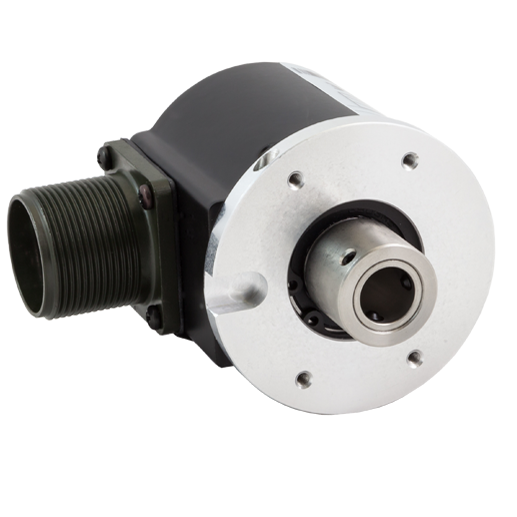

Series RE410
Hollow shaft for direct coupling to a motor shaft,
Ø 8, 10, 12, 14 or 15 mm hole – Ø 58 mm body – Antirotational fixing

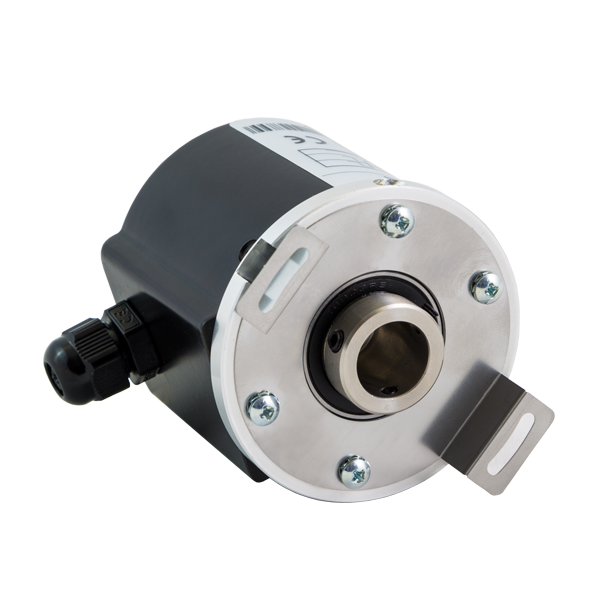

Series RE450
Hollow shaft for direct coupling to a motor shaft,
Ø 8, 10, 12, 14 or 15 mm hole – Ø 58 mm body
Fixing by elastic support
