Compact size H38
Encoder REC
- M12 connector or cable
- Round or square flange or hollow shaft
- Body Ø 58 mm
- PPR: 2 to 12500
Compact size – M12 connector – UL listed
Compact sized encoders series REC fit to any application where short body dimensions are required – the case length only measures 38 mm.
REC encoders are available with different mechanical versions: with round flange and servo copling (type REC520/REC540), square flange (REC620) or hollow shaft, with (REC450) or without elastic support(REC440).
The case is out of strong aluminium and connections are ensured by the connector type M12, or optionally by cable. The encoder with M12 connector output is UL Listed for the canadian and US markets.
The pulses per revolution number ranges from 2 to 12500.
TECHNICAL SPECIFICATIONS
- Case length 38 mm
- Aluminium case
- Supply 5/30 Vdc
- Power consumption 30/80 mA
- Max frequency 100 KHz / 200 KHz for ppr>1250
- M12 connector or cable outlet in radial position (cable length 1 m)
- Electronic signals: push-pull, 5Vdc line driver (supply 5/30 Vdc) or 5/30 Vdc line driver (supply 5/30 Vdc)
- Protection against short circuits and polarity reversal
- IP65 protection degree
- Number of pulses/revolution: 2 to 12500
Series REC540
Round flange Ø 58 mm,
centering mask Ø 36 mm Shaft Ø 6, 8, or 10 mm Clamping flange
Series REC520
Round flange Ø 58 mm Servo coupling
Shaft Ø 6, 8 or 10 mm Synchro flange
Series REC440
Hollow shaft
Ø 8, 10,12, 14, 15 mm Antirotational fixing
Series REC450
Hollow shaft
Ø 8, 10,12, 14, 15 mm. Fixing by elastic support

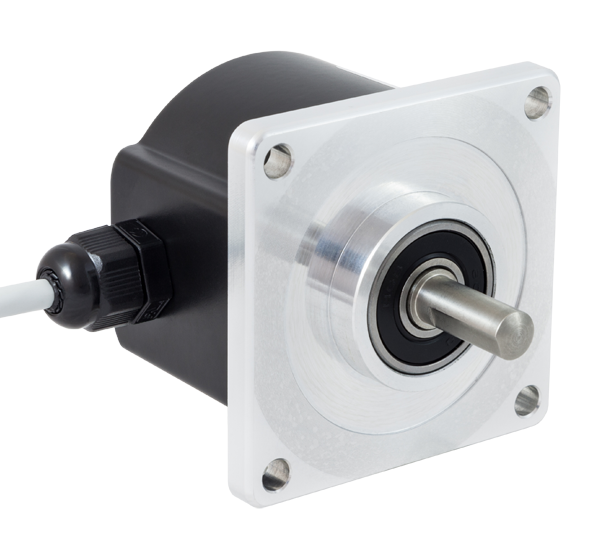

Series REC620
Square flange 63.5 x 63.5 mm
Shaft diameter 6, 8, or 10 mm
