Body Ø 40 mm
Encoder RE40
- Round flange, square flange, hollow shaft, screw fixing versions available
- PPR: 2 ÷ 12500 Metal housing
Ø 40 mm – metal housing

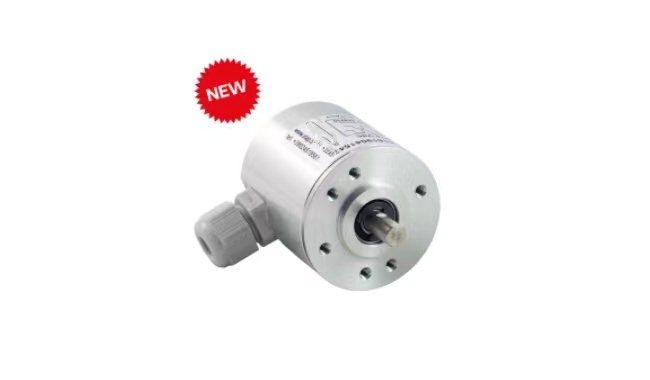

The small size encoders series RE40 feature great accuracy, compact size and stoutness.
The incremental encoder RE40 can be supplied with different mechanical flanges: the type RE40 has 6 fixing holes on diameter 30 mm, while the encoder E40V has a front fixing screw, and the series RE40Q is provided with a square flange of mm 43×43.
The types RE40M and RE40S are hollow shaft encoders designed for motor coupling, respectively by joint and by anti-rotational elastic metal support. For all the types the ppr no. ranges from 2 to 12500, with or without zero pulse (RE40 or RE41).
The aluminium housing, with axial or radial cable gland, grants IP65 protection degree against environmental agents.
TECHNICAL SPECIFICATIONS
- Round flanged encoder, body Ø 40 mm
- shaft Ø 6 or 4 mm (RE40, RE40V, RE40Q)
- hollow shaft Ø 6 or 8 mm (RE40M, RE40S)
- supply: 5Vdc or 8/24Vdc
- 2 to 12500 ppr
- max. frequency: 100/150 KHz
- output signals: push-pull, 5V line driver (supply 5V or 8/24V), 8/24V Line driver (supply 8/24V)
- protection against short circuits and polarity reversal
- radial cable gland, cable 1 m long
- protection degree: IP65
- Aluminium case
Series RE40
Ø 40 mm round flange, 6 holes on Ø 30 mm
Series RE40V
Ø 40 mm round flange, M18x1 screw coupling – Shaft Ø: 6 mm optional 4 mm
Series RE40Q
Square flange mm 44×44 Shaft Ø: 6 mm optional 4 mm
Series RE40M
Hollow shaft encoder for motor coupling – Shaft Ø: 6 or 8 mm – Antirotational fixing
Series RE40S
Hollow shaft encoder for motor coupling – Fixing by elastic support – Shaft Ø: 6 or 8 mm
