Body Ø 40 mm
Encoder E40
- Round flange, square flange, hollow shaft, screw fixing versions available
- PPR: 2 ÷ 12500
Ø 40 mm

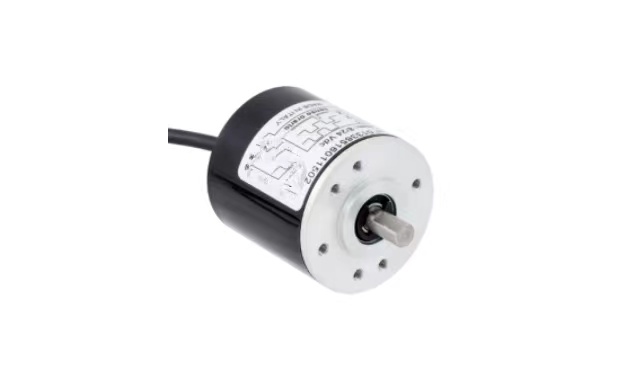

The small size encoders series E40 feature great accuracy and compact size.
The incremental encoder E40 can be supplied with different mechanical flanges: the type E40 has 6 fixing holes on diameter 30 mm, while the type 40A has 4 holes on diameter 25.4 mm; the encoder E40V has a front fixing screw, and the series E40Q is provided with a square flange of mm 43×43. The types E40M and E40S are hollow shaft encoders designed for motor coupling, respectively by joint and by anti-rotational elastic metal support. For all the types the ppr no. ranges from 2 to 12500, with or without zero pulse (E40 or E41).
The series standard case is out of ABS plastics, with axial or radial cable or connector outlet; series RE40 with aluminium housing and IP65 radial cablepress outlet is also available.
TECHNICAL SPECIFICATIONS
- Round flanged encoder, body Ø 40 mm
- shaft Ø 6 or 4 mm (series E40/E40A/E40V/E40Q)
- hollow shaft Ø 6 or 8 mm(series E40M/E40S)
- supply: 5Vdc or 8/24Vdc
- 2 to 12500 ppr
- max. frequency: 100/150 KHz
- output signals: push-pull, NPN open collector, 5V line driver (supply 5V or 8/24V), 8/24V Line driver (supply 8/24V)
- protection against short circuits and polarity reversal
- axial or radial cable, 1 m long; optional: axial connector (special versions X..)
- protection degree: IP54
- ABS plastic case
Series E40
Ø 40 mm round flange, 6 holes on Ø 30 mm – Shaft Ø: 6 mm optional 4 mms
Series E40A
Ø 40 mm round flange, 4 holes on Ø 25.4 mm – Shaft Ø: 6 mm optional 4 mm
Series E40Q
Square flange mm 44×44 Shaft Ø: 6 mm optional 4 mm
Series E40V
Ø 40 mm round flange, M18x1 screw coupling – Shaft Ø: 6 mm optional 4 mm
Series E40M
Hollow shaft encoder for motor coupling – Shaft Ø: 6 or 8 mm
Series E40S
Hollow shaft encoder for motor coupling – Fixing by elastic antirotational metal support Shaft Ø: 6 or 8 mm
