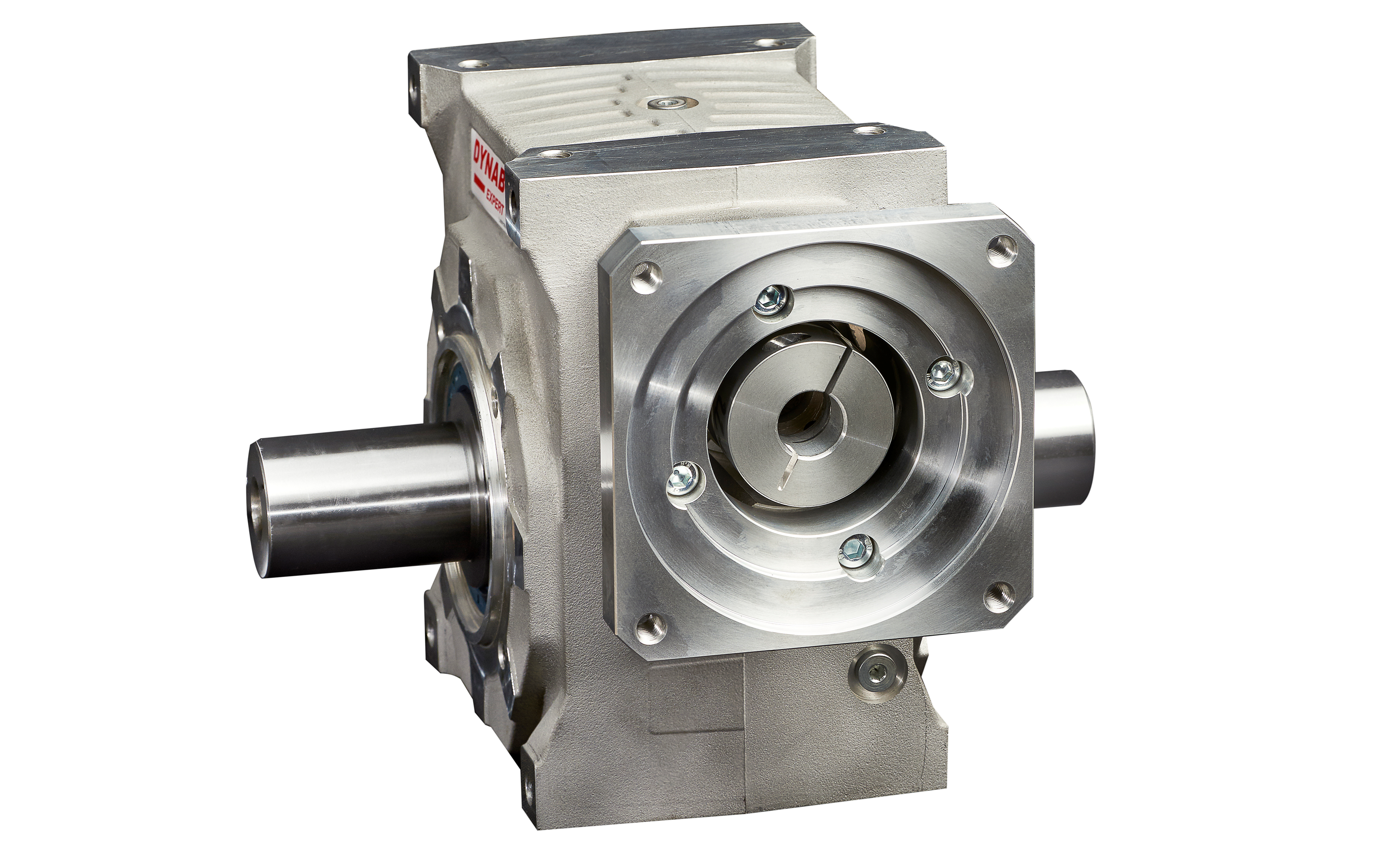

Precision Worm Gearbox

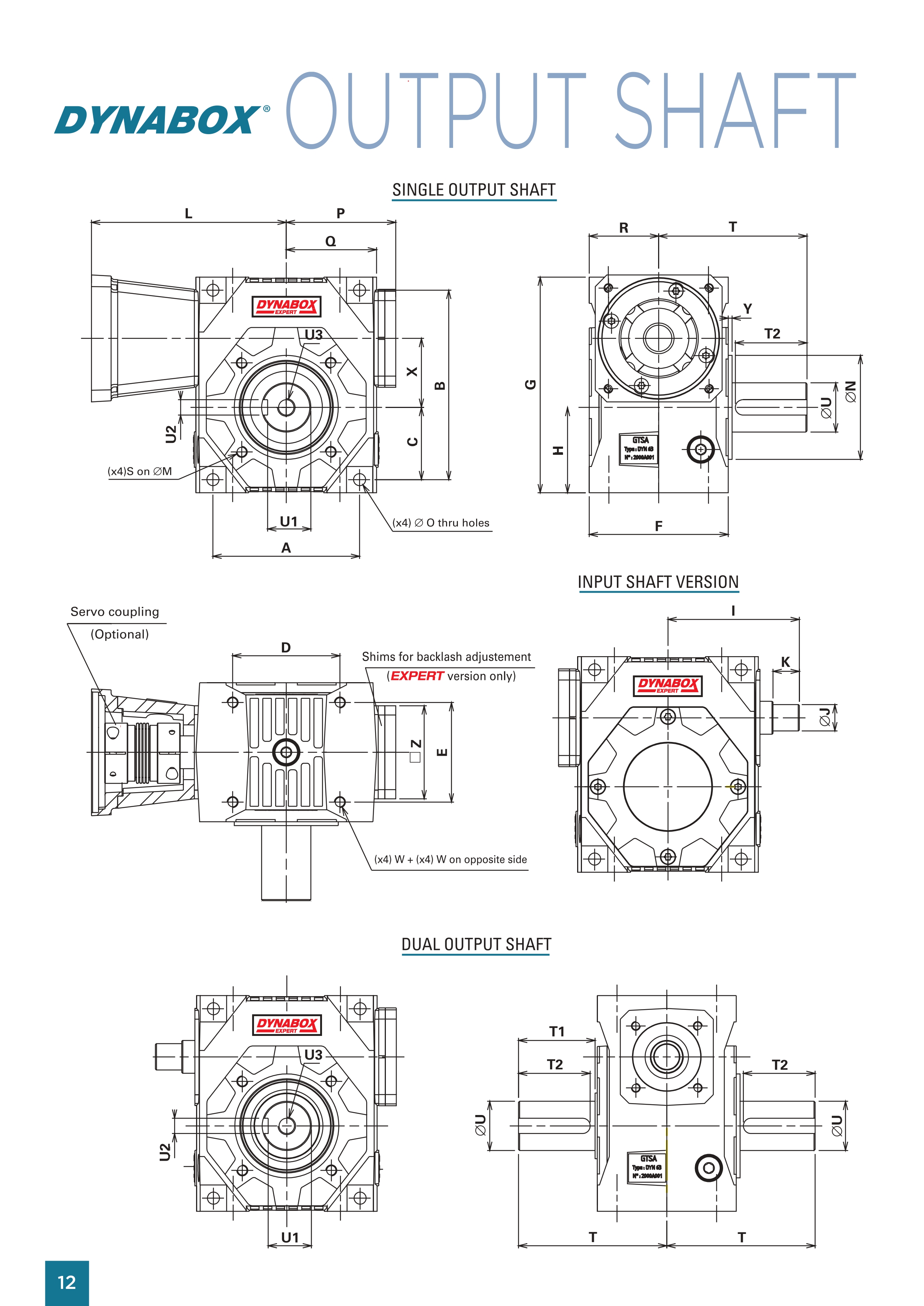

Dual Output Shaft

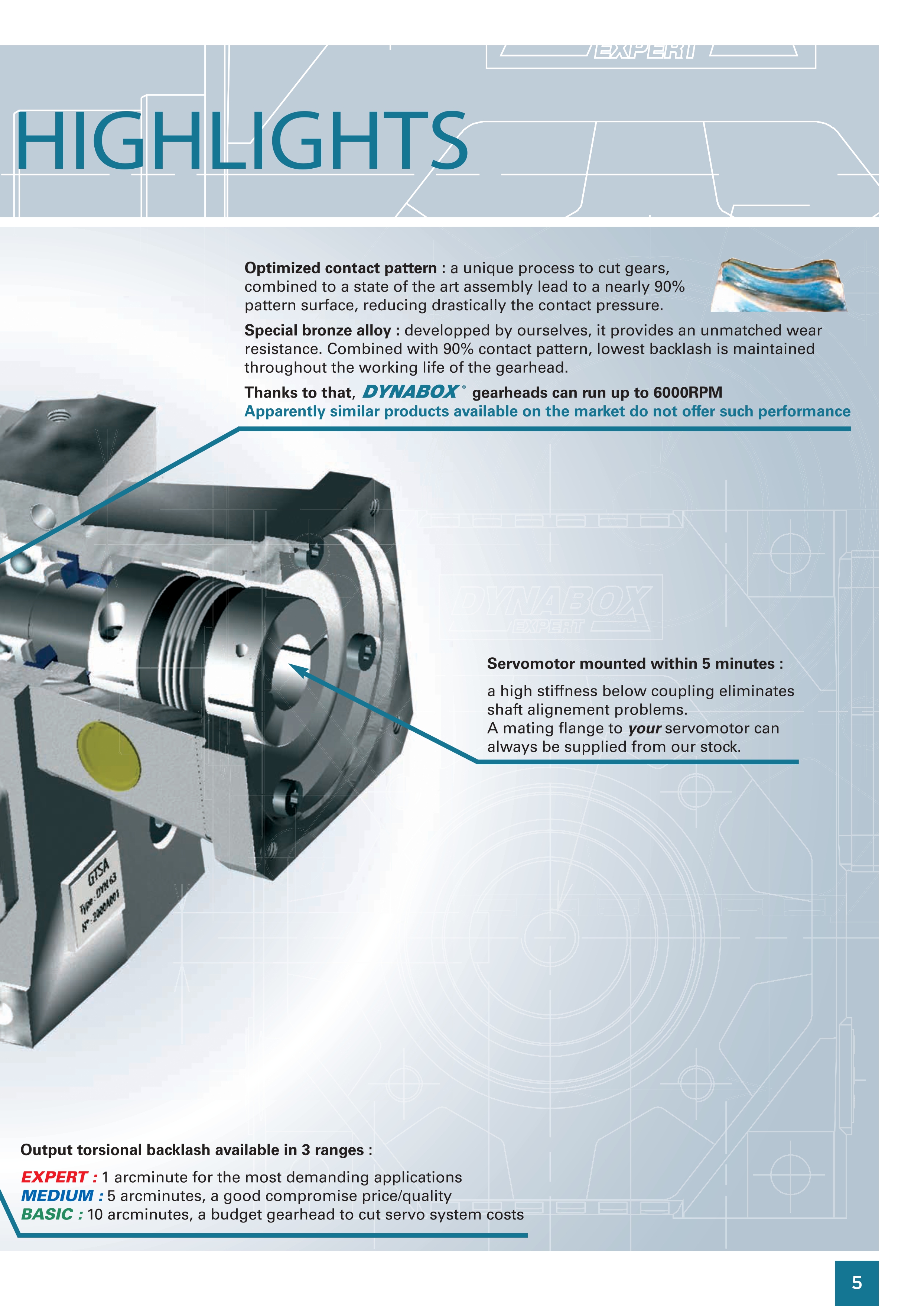

Backlash : ㅤBasicㅤ10 Arcmin
ㅤ ㅤ ㅤ ㅤ ㅤMediumㅤ3~5 Arcmin ㅤ
ㅤ ㅤ ㅤ ㅤ ㅤExpertㅤ1 Arcmin
Max. Input Speed (rpm) : 6000
Max. Output Torque (N·m) : 13000
Max. Fr (N) : 78000
Max. Fa (N) : 71000
Ratio : 3.125 ~ 90:1
In/Output Options (Types) : 5

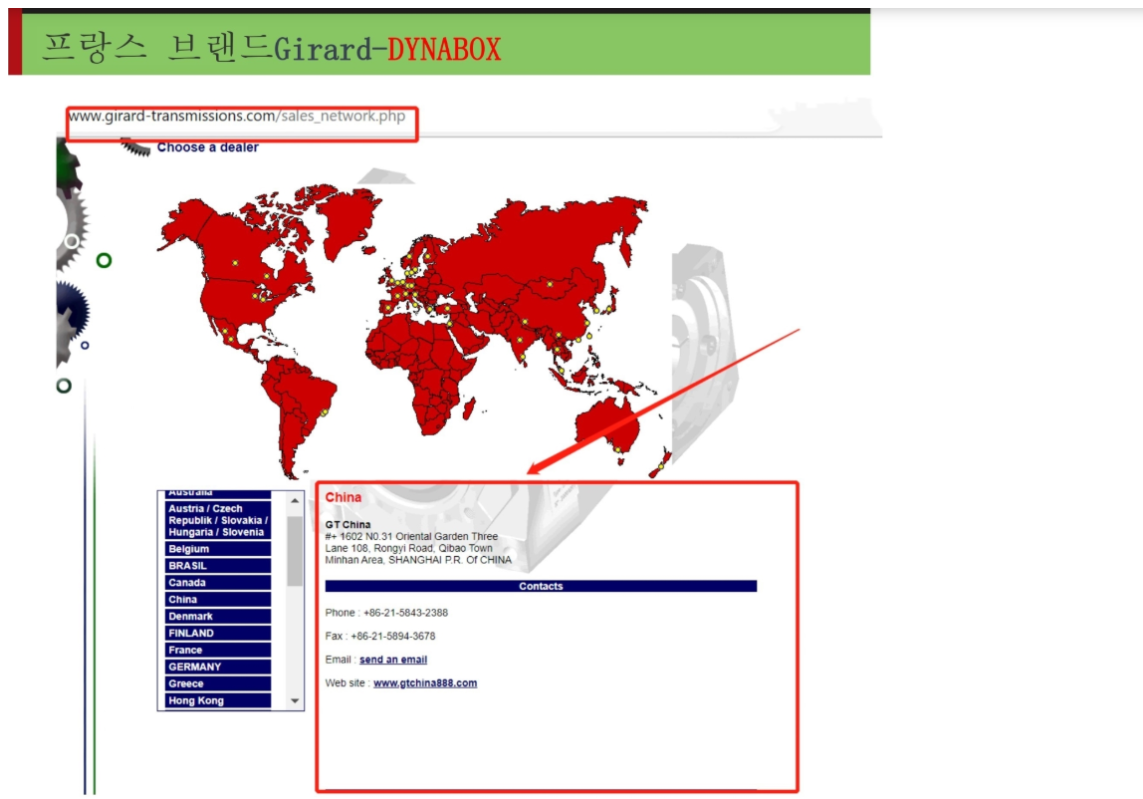

Origin : Girard Transmission (France)
For more Information, please click the Manual Box below.
The following products are not available.
Single Output Shaft
