1. DF Type

 Friction torque limiter 'DF'

Simple and compact solution.

Version with coil springs for pairs and fine adjustment of the couple: …/CM.

 Available in corrosion: DF/EA.

 Available with customized alignments (“L”) interchangeable with other models on the market.

 Available with radial ring statically balanced: …/GR.

 Up to 23 000 Nm of torque and 140mm bore.

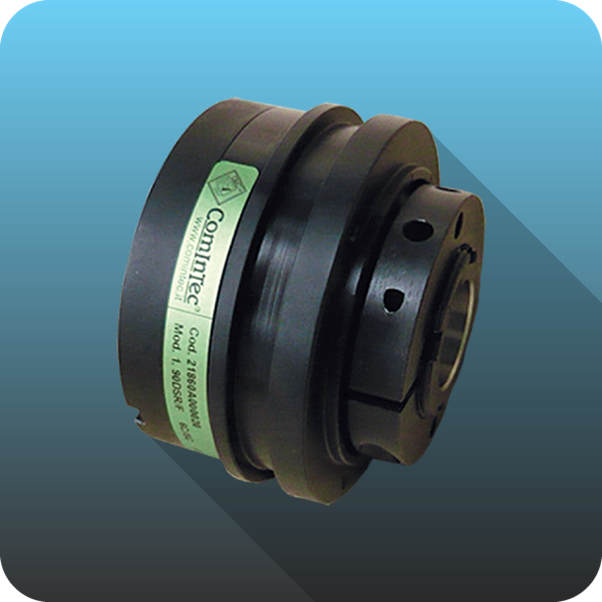

2. DSR Type

 Rollers torque limiter  'DSR'

 Basic model, connection with in-line shafts possible.

The assembly with helical springs allows a higher sensitivity in torque setting: …/CM.

 Available with longer shaft for the assembly with transmission elements of large size : …/ML.

 Available with anti-corrosive surface treatments.

Available with intervention signal ring.

Torque range from 2,5 to 12000 Nm; max. bore ø120 mm.

3. EDF/F Type

Economy balls torque limiters ‘EDF/F’

 Mounting organ inside the device as in the models to friction.

Automatic re-engagement after the restoration of transmission

Available with radial ring statically balanced

 Model with flange for custom links: EDF / F / F.

Model available only with finished bore.

Torque range from 7.5 to 1450 Nm and finished bore up to ø55 mm.

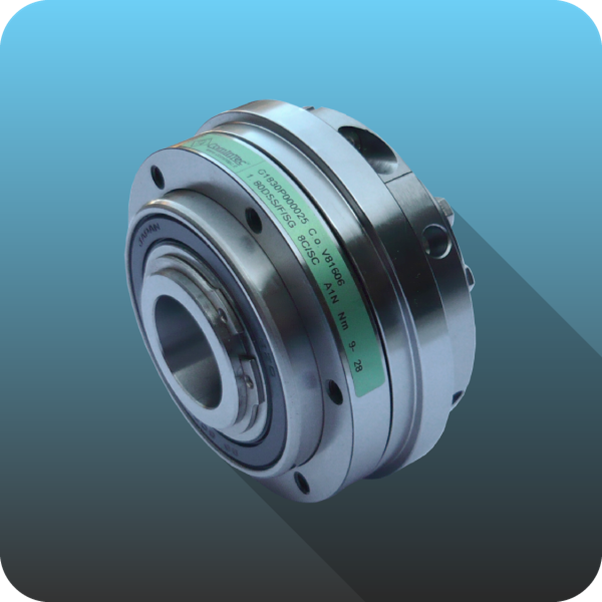

4. DSS/SG Type

Ball Torque Limiter

From 1.5 to 900Nm, up to 65mm hollow shaft

stainless steel

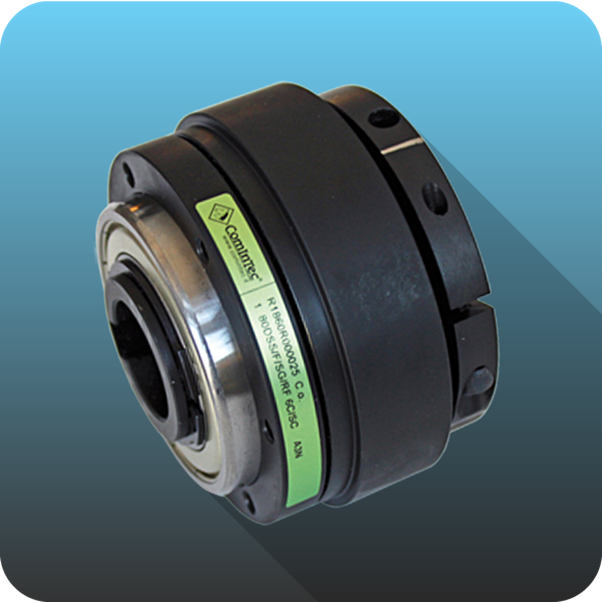

5. DSS/SG/RF Type

Torque Limiter Free Rotation

From 0.6 to 750Nm, up to 65mm hollow shaft

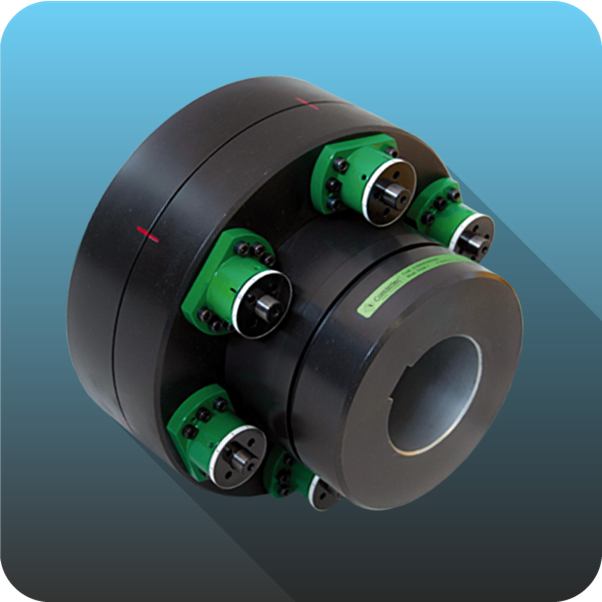

6. DSM Type

  Module Torque Limiter

Up to 12000Nm, up to 260mm hollow shaft

 7. PR Type

Torque Limiter for Reducer

Up to 2600Nm, up to 65mm hollow shaft

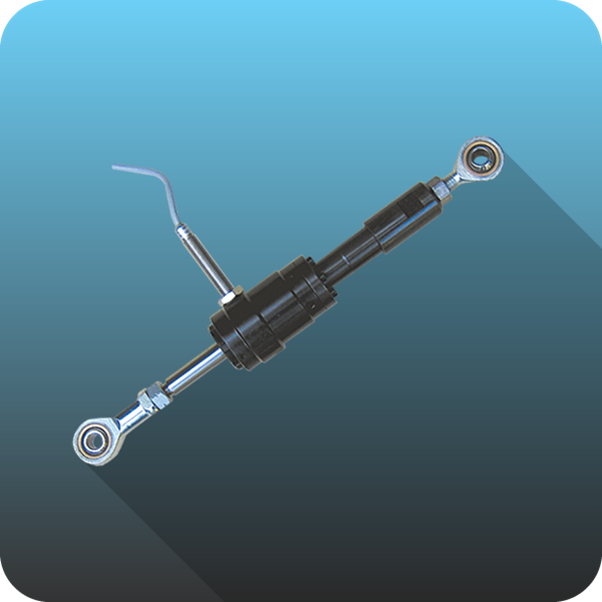

  8. DSA Type

Axial Force Limiter

30~4700N

There are more option of sizes for this product. You can find more information →HERE
